Mineplast

Mineplast Fire-Resistant belting has a proven track record of delivering superior performance in coal mining and similar applications, where continuous high output relies on belt durability and reliability. Designed primarily for underground and surface applications, as well as other potentially hazardous environments, Mineplast Fire-Resistant meets—and often exceeds—global fire-resistance and anti-static safety standards.

Engineered with high-quality PVC compounds, customizable cover thickness, and a solid woven carcass, this belt is ideal for conveying coal, potash, phosphate, fertilizer, clay, gypsum, and salt, and is also well-suited for the timber industry.

Mineplast Pro

Our R&D team has recently developed Mineplast Pro PVC conveyor belts, designed to deliver superior quality with enhanced durability. Featuring a higher cover thickness of 3mm on the top and 2mm on the bottom, along with improved abrasion resistance, Mineplast Pro ensures an extended service life in coal mining and other demanding surface applications. Its robust construction guarantees optimal performance and reliability, even in high-output operations where belt endurance is critical.

Product Features

All-synthetic high tenacity centre warp yarns, for strength and minimum elongation.
All-synthetic pile warp yarns, to protect against impact damage, improve adhesion and give superb fastener bedding.
Composite weft yarn, to give optimum transverse rigidity and superb fastener holding.
Woven selvedge to reduce edge-ware and improve belt life.
Complete vacuum impregnation and consolidation of PVC compound through solid woven fabric, to improve tear strength and to reduce ingress of moisture.
Special PVC cover, to reduce abrasion and improve carrying capacity through the life of the belt.

We deploy wide-ranging engineering capabilities to complete manufacturing of products on schedule realizing that our products drive our customer's business ahead.

TECHNICAL INFORMATION

Belt Nomenclature

Belts can be manufactured to various tensile strengths. Different markets may specify or enquire in different terms, for example, they may quantify either in Ibs/in or in kN/m. The table below gives the tensile strength of our range of belts in lbs/in and kN/m.

The belt designation has been expressed in lbs/in with the corresponding values in kN/m provided. The typical values of warp and weft tensile strength are given in the table based on a 1mm PVC cover thickness.

Belt Thickness

The textile content of Solid Woven Mineplast belting, as compared to ply belting is high and the properties exhibited by the bulk carcass are far better. Thus, a thinner cover can be chosen than one that would be normally associated with a ply belt, largely due to Mineplast’s enhanced carcass density, which provides the load-bearing support.

Belt Weight

A lower belt weight in solid woven belting, as compared to a ply belt, may be advantageous for a long conveyor as it saves on power consumption, a factor that customers may take into consideration.

Drum Diameters

Recommended minimum drum diameters are provided for general applications. However, if conveyor details like angle of wrap, belt speed, tension and method of jointing are furnished, it is possible to suggest smaller drum diameters.

Factor of Safety

The operating factor of safety is 10:1 with a superior quality joint whether vulcanized or mechanical.

Belt Stretch

Mineplast Solid Woven belting is manufactured with a unique design and in such a manner that the elongation in service is kept to a minimum.

Technical Specifications

The table below shows nominal figures for minimum warp & weft breaking strengths, belt thickness & weight for a selection of belt types, based on 1mm x 1mm PVC covers on either side. For every additional 1 mm PVC cover, add 1.25 kg/sq.mtr. or 0.204816 lbs/sq. ft. for PVC covers.

Belt Designation	Wrap Breaking Strength		Weft Breaking Strength		Cover Thickness	Belt Thickness*	Belt Weight*		Minimum recommended Drum Diameters
lbs/in	KN/Mtr	lbs/in	KN/Mtr	lbs/in	mm	mm	kg/sq.m	lb/ft²	high tension(mm)	Low tension(mm)
2500	438	2501	265	1513	1.0×1.0	7.5	9.5	1.9	315	250
3500	610	3483	265	1513	1.0×1.0	8	10.5	2.2	400	315
4000	700	3997	265	1513	1.0×1.0	8.3	10.9	2.2	400	355
4500	788	4500	352	2010	1.0×1.0	8.5	11.2	2.3	500	355
5000	875	4996	352	2010	1.0×1.0	8.9	11.5	2.4	500	355
6000	1050	5996	352	2010	1.0×1.0	9.4	12	2.5	630	400
6500	1140	6510	352	2010	1.0×1.0	9.5	12.5	2.6	630	400
7000	1225	6995	352	2010	1.0×1.0	10.5	14	2.9	750	450
8000	1400	7994	425	2427	1.0×1.0	11.0	15.0	3.1	750	450
9000	1576	8999	425	2427	1.0×1.0	12.0	15.5	3.2	800	600
10000	1751	9998	455	2598	1.0×1.0	13.0	16.5	3.4	800	600
11000	1926	10998	455	2598	1.0×1.0	13.5	17	3.5	1000	750
12000	2100	11991	455	2598	1.0×1.0	14.5	18.0	3.7	1000	750
14000	2452	14001	455	2598	1.0×1.0	15.5	19.0	3.9	1250	800
15000	2625	14989	455	2598	1.0×1.0	16.5	20.0	4.1	1250	800

THE MINEPLAST & MINEPLAST PRO ADVANTAGE

At ICL, safety is our top priority, which is why our high-performance belts are the result of a fully integrated in-house development process. From yarn preparation and fabric weaving to compound mixing and belt finishing, every stage is meticulously controlled to ensure the highest global standards of safety and performance. Our rigorous quality control measures guarantee reliability, with each belt undergoing comprehensive testing for physical durability,fire resistance, and anti-static properties.

We specialize in Solid Woven Conveyor Belting, engineered with a superior carcass that offers complete moisture resistance. Key advantages of our Solid Woven conveyor belts include:

Lower power requirement when compared to Rubber Belts due to the lower weight of PVC belt.
Pully diameter requirement will be less in case of PVC Belt when compared to the Rubber belt as the flex fatigue is lower in the case of solid woven carcass.
Pully diameter requirement will be less in case of PVC Belt when compared to the Rubber belt as the flex fatigue is lower in the case of solid woven carcass
Enhanced flexibility for easier toughing and tracking, thanks to solid woven construction.
Superior durability, offering high resistance to impact, edge wear, and longitudinal tearing.
Strong mechanical fastener retention for reliable performance.
Exceptional resistance to water, oil, bacteria, acids, and chemicals.
Capacity to withstand high dynamic and static properties for both vulcanized (splicing) and mechanical joints.

PRODUCT TESTING

A key function of ICL’s Research & Development team is the continuous testing of Mineplast products to ensure they meet the highest standards in conveyor belting, particularly for underground applications. Our in-house dynamic testing processes guarantee that every belt surpasses its performance and longevity expectations.

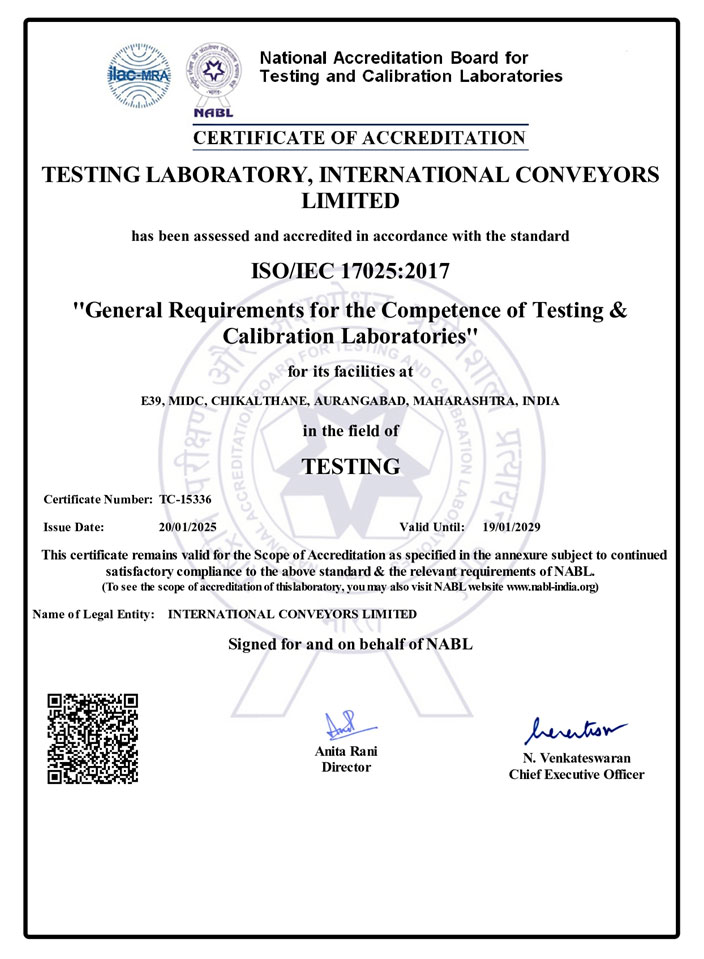

We are the only PVC Conveyor Belt Manufacturer in India whose lalaboratory is accredited under ISO/IEC 17025:2017 standards by the National Accreditation Board for Testing and Calibration Laboratories (NABL), an autonomous body setup under Department for Promotion of Industry and Internal Trade (DPIIT), Ministry of Commerce and Industry, Government of India.

Manufacturing Process

Twisting and doubling machines, capable of handling up to 20 Tons of yarn at a time.
One of the widest and heaviest beaming machines in the world with a 2400 mm beam width.
Weaving looms capable of handling up to 22 tons of beamed yarn in a single load.
Highly skilled workforce with an average on-the-job experience exceeding 20 years.
At least three of the widest and heaviest woven belting looms in the world, with up to 2100mm reed space and each weighing up to 100 tons, including their structure, machine and loaded beam weights.
Quartz infra-red heat curing.
Fully equipped Test Laboratory .
Six storey high Vacuum Impregnation Tower.
Electronically controlled Integrated Coating plant.

We are an ISO 9001:2008 certified Company meeting international quality benchmarks. We also enjoy several certifications and endorsements from stringent global regulatory bodies.
